loadstar ls rs 4532 reach stacker

The LOADSTAR LSRS 4532 sets new benchmarks in the material handling industry with its innovative design and cutting edge features, ensuring exceptional performance, efficiency, and operator comfort.

POWERTRAIN

Powered by a Volvo/Cummins engine, delivering over 250 kW (335HP) of power and torque optimized for efficiency. Paired with the latest DANA Powershift Transmission and AxleTech/Kessler heavy-duty Drive Axle, the LSRS 4532 achieves outstanding performance while ensuring that fuel efficiency is achieved through the advanced powertrain and hydraulic electronic system design.

TRUCK MANAGEMENT SYSTEM

Custom-designed by COBO Group (Italy), the integrated truck management system utilizes CANbus interfaces for precise control over engine, transmission, hydraulics, and Load Moment Limiter.

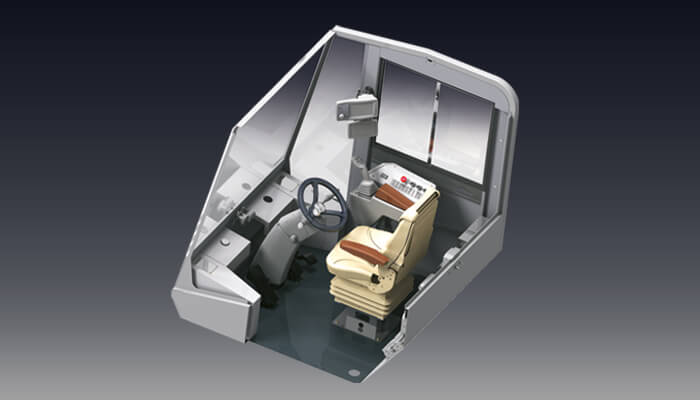

CABIN DESIGN

The state-of-the-art cabin features:

Surface treatment for durability in harsh conditions.
Rear-positioned, elevated layout for enhanced visibility during container stacking and reverse maneuvers.
Redesigned chassis frame, along with a sliding cabin design, to allow easy access to engine and hydraulic main control valve without cab removal.

Operator Comfort and Safety

The cabin prioritizes operator comfort with:

Fully adjustable features including comfortably positioned switches, emergency keys, and joystick on custom RH seat armrest.
Vibration isolation mounts and adjustable steering column for enhanced comfort and control.
7” color displays provide comprehensive operational data, safety information, and rear view.

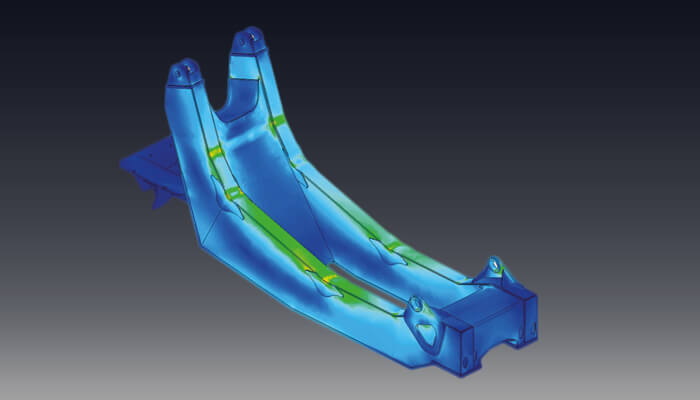

Engineered to meet DIN 15018/EN 1459 standards for structural integrity during freight container handling. Detailed FEM analysis ensures reliability during critical stacking and travel conditions.

Structural Integrity and Standards

Engineered to meet DIN 15018/EN 1459 standards for structural integrity during freight container handling. Detailed FEM analysis ensures reliability during critical stacking and travel conditions.

Innovative Design Features

Trough-shaped chassis frame allows 30% greater engine exposure, facilitating access to powertrain components.
Elevated cabin position eliminates heat radiation from engine to floor, improving operator comfort and efficiency.
